Omnikey 4321

Omnikey 4321

39,99 € [excl. Shipping Fees excl. 19% VAT.]

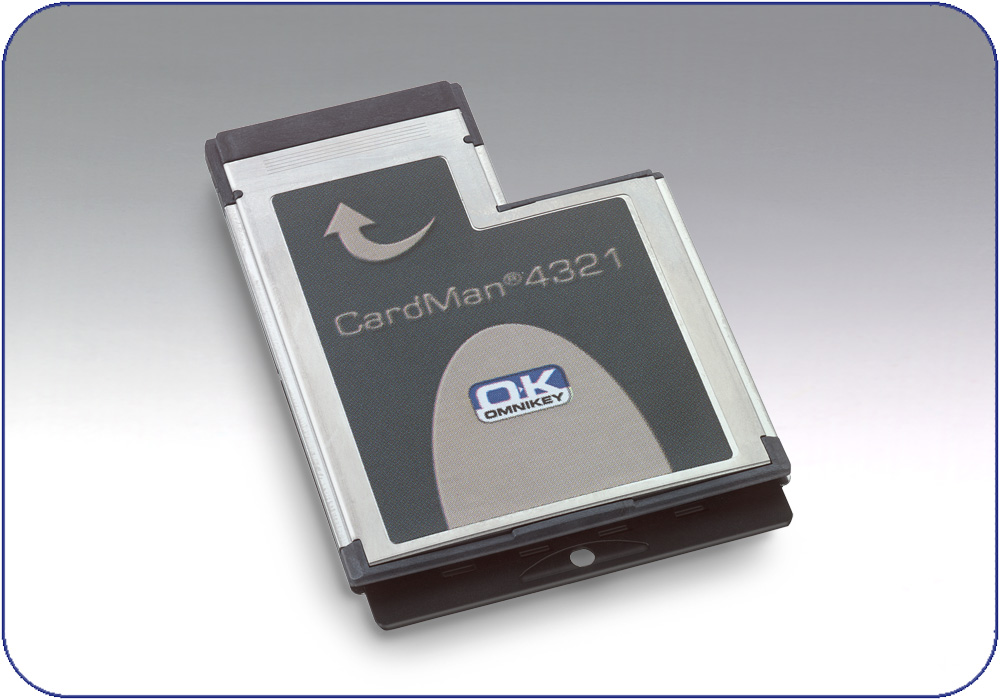

The Omnikey 4321 is one of the first ExpressCard™ smart card readers available on the market. The new interface standard, designed to enable smaller and faster PC card solutions for next generation PCs, has already been implemented in the latest laptops in addition to or as a replacement for traditional PC Card expansion slots.

*
Categories: , Tags: , , ,

Description

Whatever the requirement of the mobile contact smart card-based security application, OMNIKEY’s new high-speed ExpressCard™ reader can support it. The Omnikey 4321 uses the USB 2.0 interface as defined by the ExpressCard™ standard for simple integration within a mobile device. Due to its small size, it is also ideal for mass distribution by mail, bundled in an envelope or small package together with accompanying smart cards and/or software.

Features

  • Connection
    • ExpressCard 54mm.
  • Card Contacting Unit
    • 100.000 insertion cycles.
  • Card Power supply
    • 60 mA.
  • Transmission Speed contact interface
    • with PC: 12 Mbps (USB 2.0 Full Speed).
    • with Card: up to 420 Kbps.
  • Protocols
    • T=0, T=1, 2-wire: SLE4432, SLE4442 (S=10), 3-wire: SLE4418, SLE4428 (S=9), I2C (S=8), SLE 4404.
  • Smart Cards
    • Supports 5V, 3V and 1,8V Smart Cards.
  • Drivers
    • PC/SC, CT-API, Sync-API.
  • MTBF
    • 500,000h.
  • Operating Systems (other Windows OS subject to testing):
    • Windows 98/ME.
    • Windows 2000.
    • Windows XP.
    • Windows 2003 Server.
    • Windows XP64bit (IA64, AMD64, EM64T).
    • Linux.
  • Compliance
    • RoHS, WEEE.
  • Certifications
    • Microsoft WHQL, EMV 2000.
  • Certifications
    • PC/SC.
  • OEM
    • OEM-Label possible.
