Description

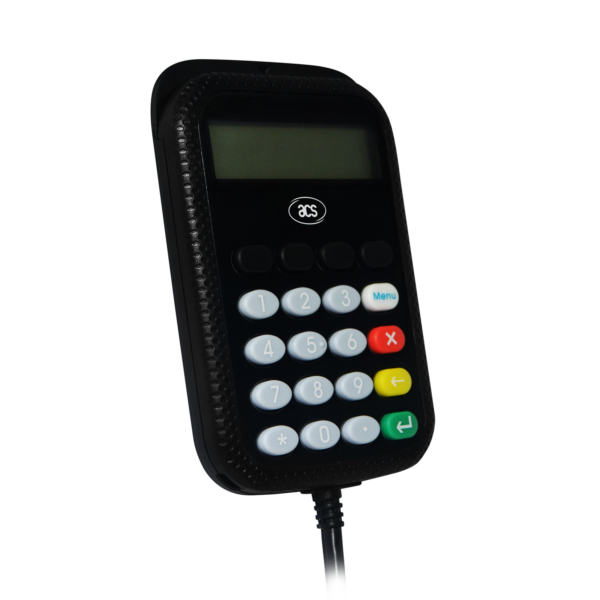

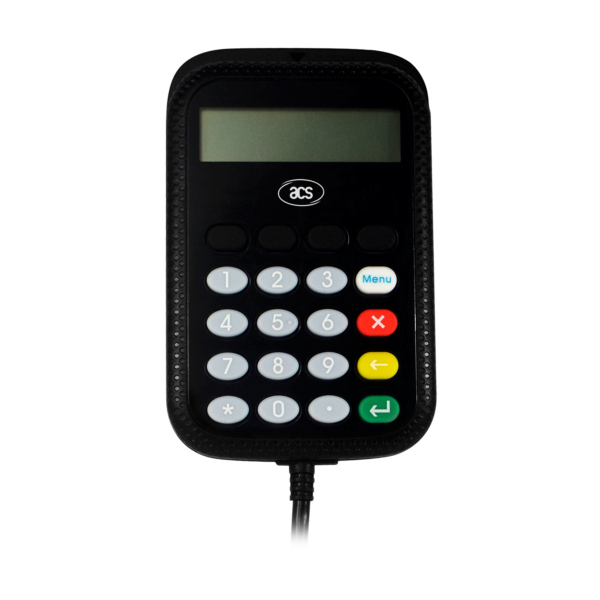

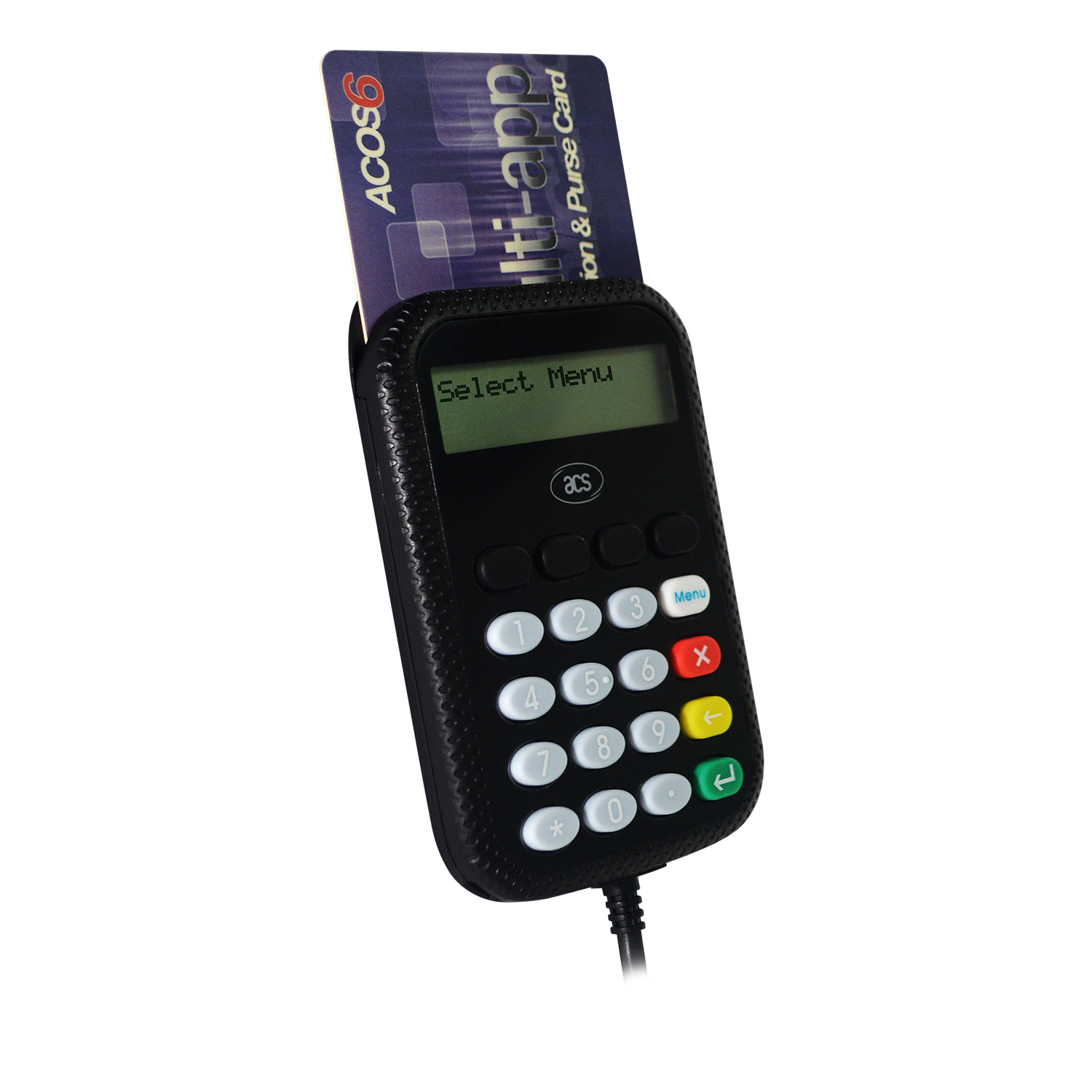

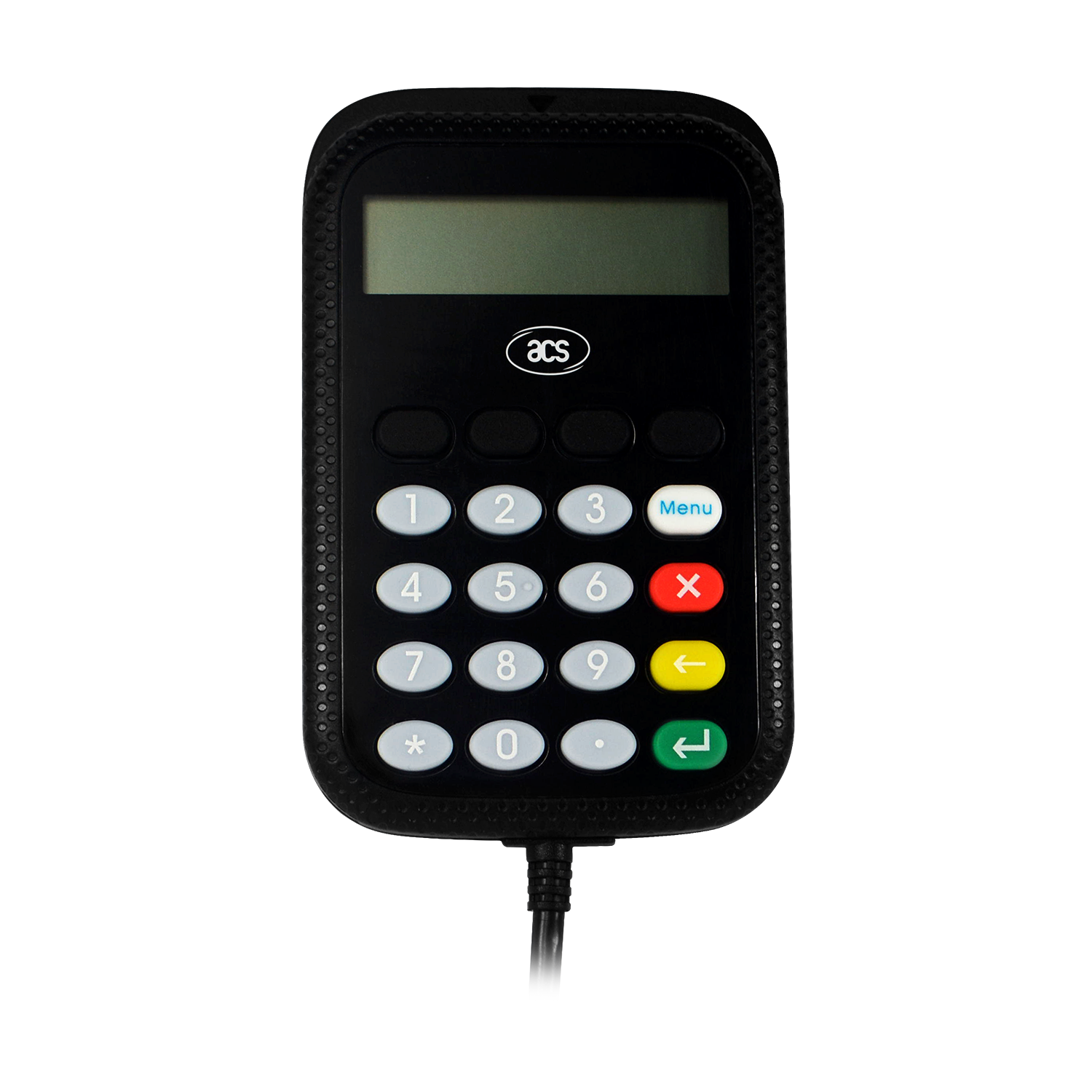

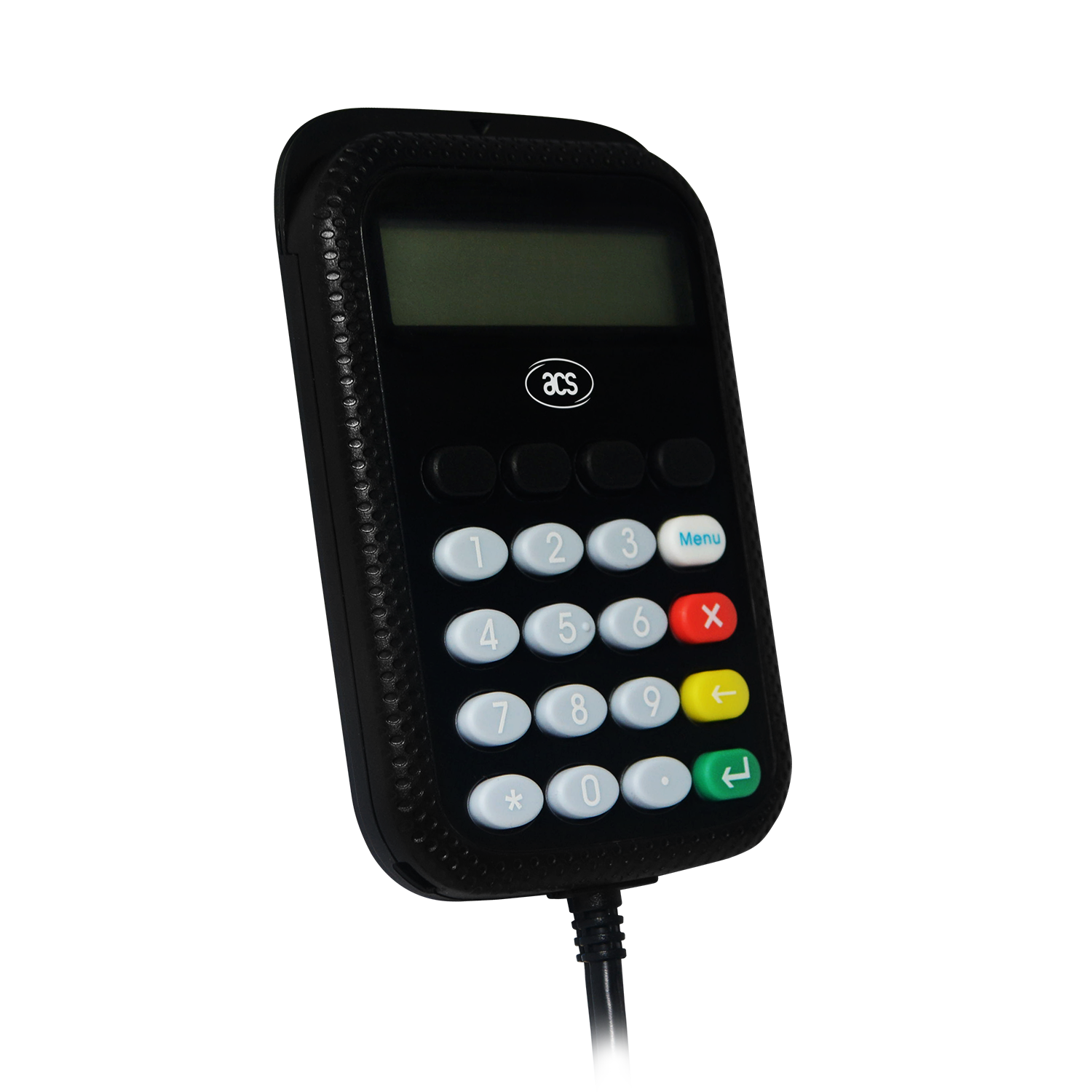

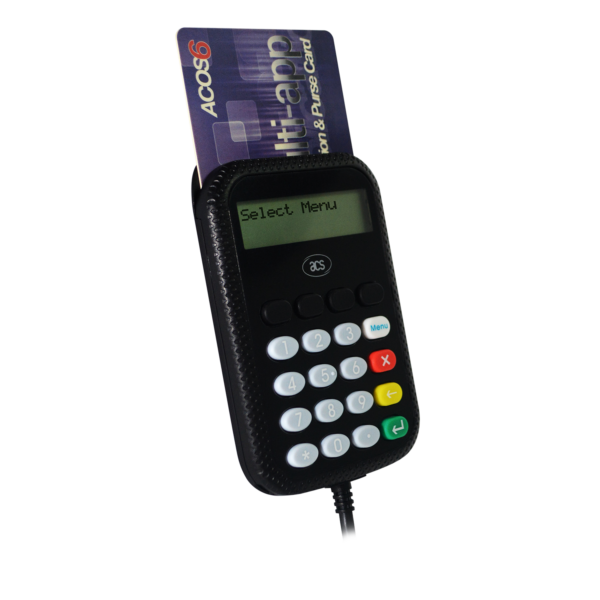

The APG8201-B2 is a smart card reader with a keypad and an LCD screen which has Secure PIN Entry (SPE) feature to protect every PIN code from attacks, such as viruses or USB sniffers. It can perform secure cardholder verification/authentication in order to allow them to perform online log-in and other online transactions. A cost-efficient response to man-in-the-middle attacks, the APG8201-B2 help end-users and organizations protect their sensitive data from these attacks.
Features:
- USB 2.0 Full Speed Interface
- CCID Compliance
- Supports PC/SC
- Supports PC/SC 2.01 Secure PIN Entry (SPE)
- Supports PPS (Protocols and Parameters Selection)
- Smart Card Reader:
- Supports full-sized microprocessor Cards (T=0, T=1 Protocols)
- Supports ISO 7816 Class A Cards
- Allows semi-insertion of cards
- Built-in Peripherals:
- Graphical LCD for Logos and Multiple-language Characters
- Monotone Buzzer
- Durable Tactile Keypad with 20 Silicon Rubber Keys
- Key Symbol on LCD to Recognize SPE Mode
Applications:
- e-Government
- Banking & Payment
- e-Healthcare
- Access Control
- Network Security
- Public Key Infrastructure
- e-Purse & Loyalty
Tech Specs:
| USB Interface | |
|---|---|
| Protocol | USB CCID |
| Connector Type | Standard Type A |
| Speed | USB Full Speed (12 Mbps) |
| Power Source | From USB Port |
| Cable Length | 1.5 m , Fixed |
| Contact Smart Card Interface | |
| Number of Slots | 1 Full-sized Card Slot |
| Standard | ISO 7816 , Class A (5 V) |
| Protocol | T=0; T=1 |
| Built-in Peripherals | |
| LCD | Dot Matrix LCD Resolution : 96 × 16 pixels Number of Characters: 16 characters × 2 lines |
| Buzzer | Monotone |
| Keypad | 20 keys |
| Certifications/Compliance | |
| Certifications/Compliance | ISO 7816 USB Full Speed PC/SC PC/SC 2.0 Part 10 – Secure PIN Entry CCID CE FCC RoHS REACH Microsoft® WHQL |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows® Linux® MAC OS® Android™ |
