Description

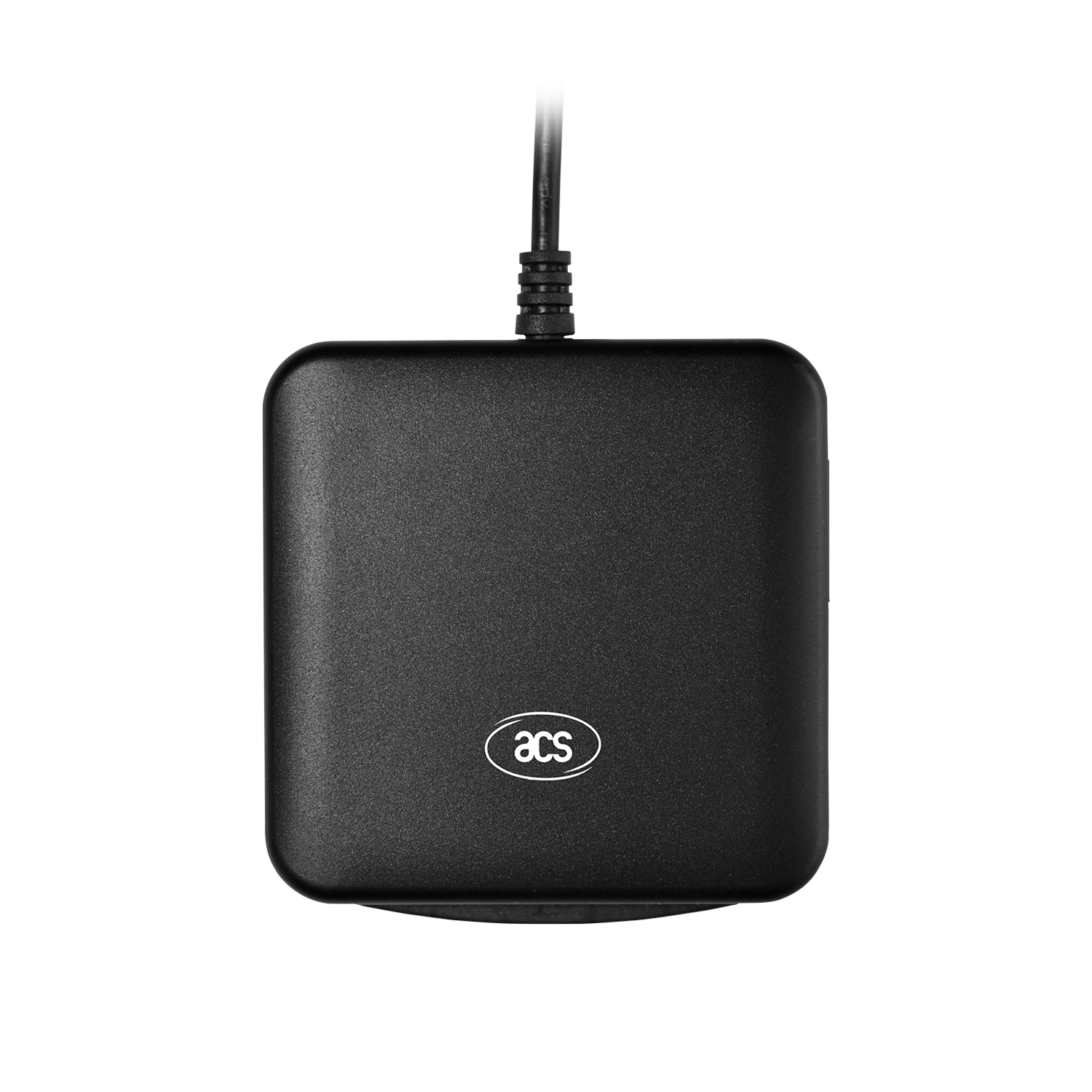

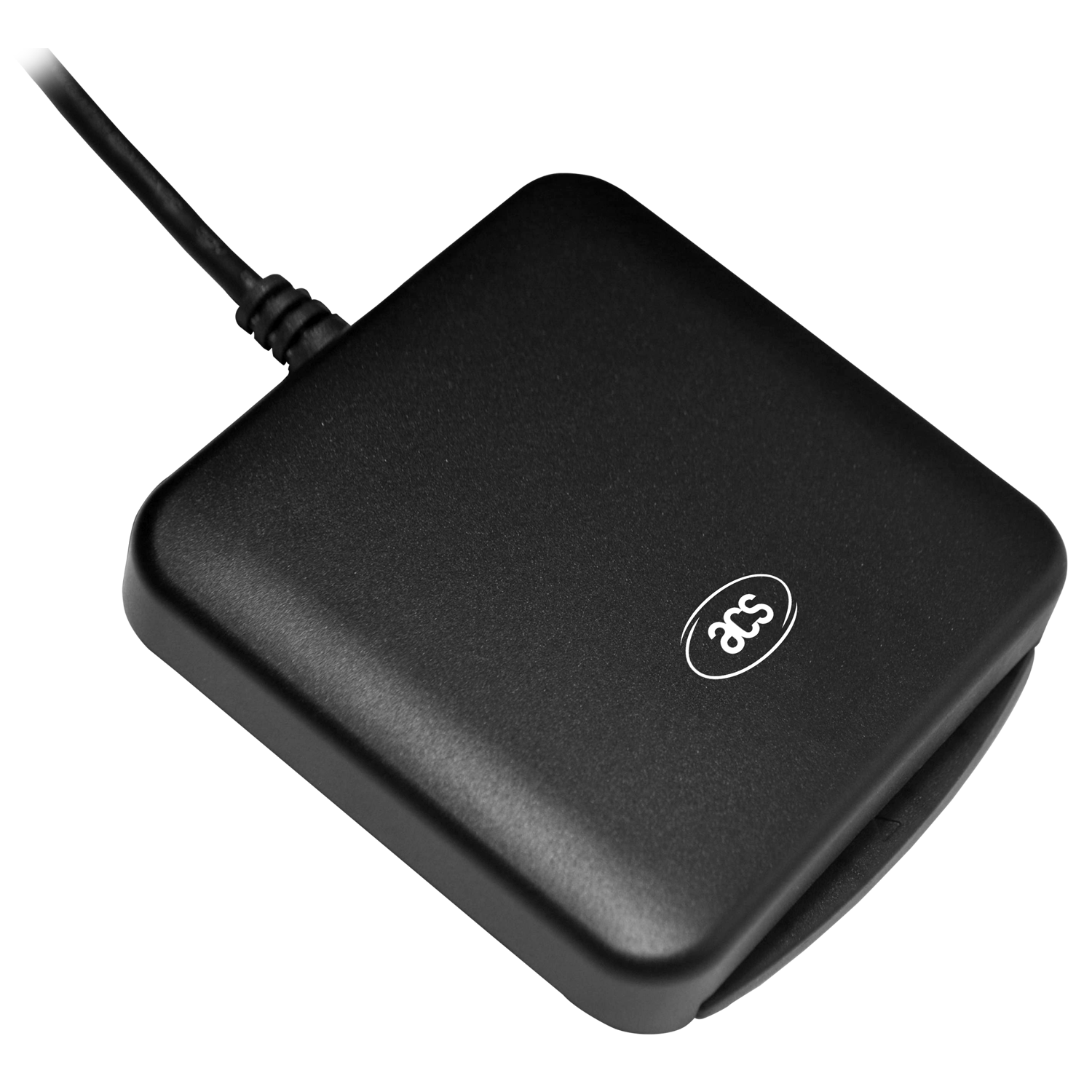

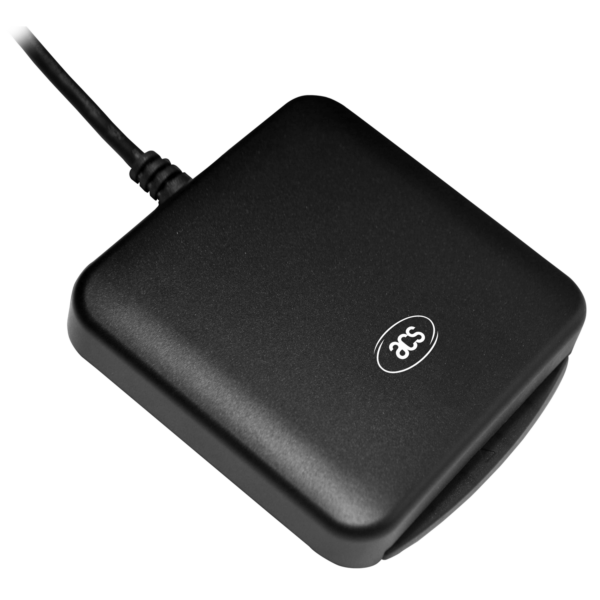

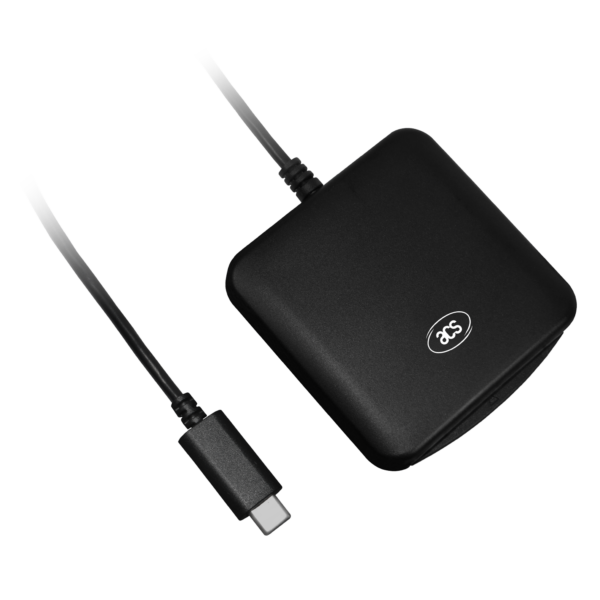

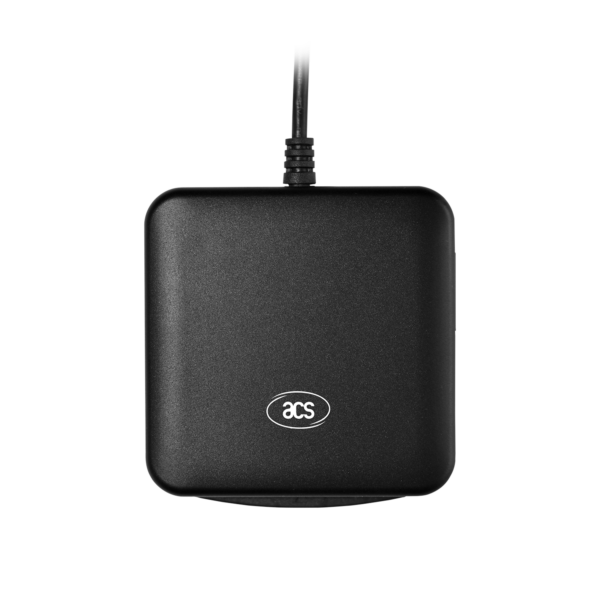

ACR39U-UF Smart Card Reader is one of ACS’s latest products addressing the evolution of USB standards. This palm-sized reader features a USB Type-C connector. The USB Type C Connector features reversible plug orientation and cable direction to fit mobile to device product designs for future smart card applications.
ACR39U-UF uses the same core as the ACR39U Series. It supports ISO 7816 smart cards and various memory cards, as well as microprocessor cards with T=0, T=1 protocols.
Unlike an older USB cable, regardless of which side is up with a Type-C plug; you can insert it either way. It complies with PC/SC and CCID standards, keeping the device compatible with current applications under USB specifications. ACR39U Smart Card Reader can easily be integrated to a computer-based and mobile device-based environment. Its drivers are compatible with operating systems such as Windows®, Solaris™, Linux®, and macOS. In addition, ACR39U-UF may be used on mobile devices running on Android™ versions 3.1 and later.
ACR39U with USB Type-C is another breakthrough for ACS readers.
Features:
- USB 2.0 Full Speed Interface
- USB Type-C Connector
- Plug and Play – CCID support brings utmost mobility
- Smart Card Reader:
- Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards
- Supports CAC
- Supports SIPRNET Card
- Supports J-LIS Card
- Supports microprocessor cards with T=0 or T=1 protocol
- Supports memory cards
- Supports Mykad Card
- Supports PPS (Protocol and Parameters Selection)
- Features Short-Circuit Protection
- Application Programming Interface:
- Supports PC/SC
- Supports CT-API CT-API (through wrapper on top of PC/SC)
- Supports Android™ 3.1 and later
Applications:
- e-Government
- Banking & Payment
- e-Healthcare
- Access Control
- Network Security
- Public Key Infrastructure
- e-Purse & Loyalty
Tech Specs:
| Physical Characteristics | |
|---|---|
| Dimensions (mm) | 72.2 mm (L) x 69.0 mm (W) x 14.5 mm (H) |
| Weight (g) | 65.0 g |
| USB Interface | |
| Protocol | USB CCID |
| Connector Type | Standard Type-C |
| Power Source | From USB port |
| Speed | USB 2.0 Full Speed (12 Mbps) |
| Cable Length | 1.5 m, Fixed |
| Contact Smart Card Interface | |
| Number of Slots | 1 Full-sized Card Slot |
| Standard | ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V) |
| Protocol | T=0; T=1; Memory Card Support |
| Others | Mykad Card, CAC, PIV, SIPRNET, J-LIS Smart Cards |
| Certifications/Compliance | |
| Certifications/Compliance | EN62368/IEC 62368 CE FCC RoHS REACH EMV™ Level 1 (Contact) J-LIS KCC PBOC TAA (USA) UKCA VCCI WEEE ISO 7816 USB 2.0 Full Speed PC/SC CCID Microsoft® WHQL |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows® Linux® macOS® Solaris™ Android™ |
